Mini Slim IP65 Outdoor Waterproof DMX LCD Display with Touch Button LED Par Light

A new IP65 outdoor par lighting fixture - TruePAR Hex6-IPT

The TruePAR Hex6-IPT equipped with 6 RGBWA+UV 6 in 1 extra bright LEDs, Seetronic Powercon True1 in and out connectors and the Seetronic IP65 XLR coonectors, LC Display with 4 touch buttons for control panel.

The custom made die-cast aluminum housing has very good heatsink function, compact size, and lightweight only 3.2 kg.

The special designed stand bracket, make the device can be handing or sit on the floor for projecting an object at any angle.

IP65 design is suitable for outdoor work environment.

And the extra high LED refresh rate (up to 25K Hz),  100% licker free, very suitable for use on very professional camera, video, movie, TV studio and so on.



Special channels HSV and HSI provided more professional colors mixing mothod.

The TruePAR Hex6-IPT, using 6 pcs 12W RGBWA+UV 6-in-1 LED, combines powerful output and colorful wash into its slim body. The par is featuring 0~100% smooth dimming with 4 variable dimming curves, an outstanding strobe effect with variable speed, variable preset macro effects and smooth color mixing & switching, to create psychedelic effect. Very suitable for bars, ball rooms, night clubs, TV studio, Threatre and other entertainment applications.

IP65 Waterproof desiged for outdoor using.

And the extra high LED refresh rate (up to 25K Hz),  100% licker free, very suitable for use on very professional camera, video, movie, TV studio and so on.





FEATURES:



Aluminum diecast housing, Slim, lightweight for easy installation and transportation

Great for quiet performance, silent operation, no moving parts inside.

Flicker free, suitable for use on camera, video, movie, TV studio and so on

Built-in non-linear dimming modes offers super-smooth LED fading

Great eye-catching built-in auto programs.

Built-in auto programs triggered via master/slave or DMX controller

Color macro and white balance modes

Stand-alone versatility provided by plenty of custom configurable settings.

Thermal sensor system provides double protection for LEDs

Key lock function

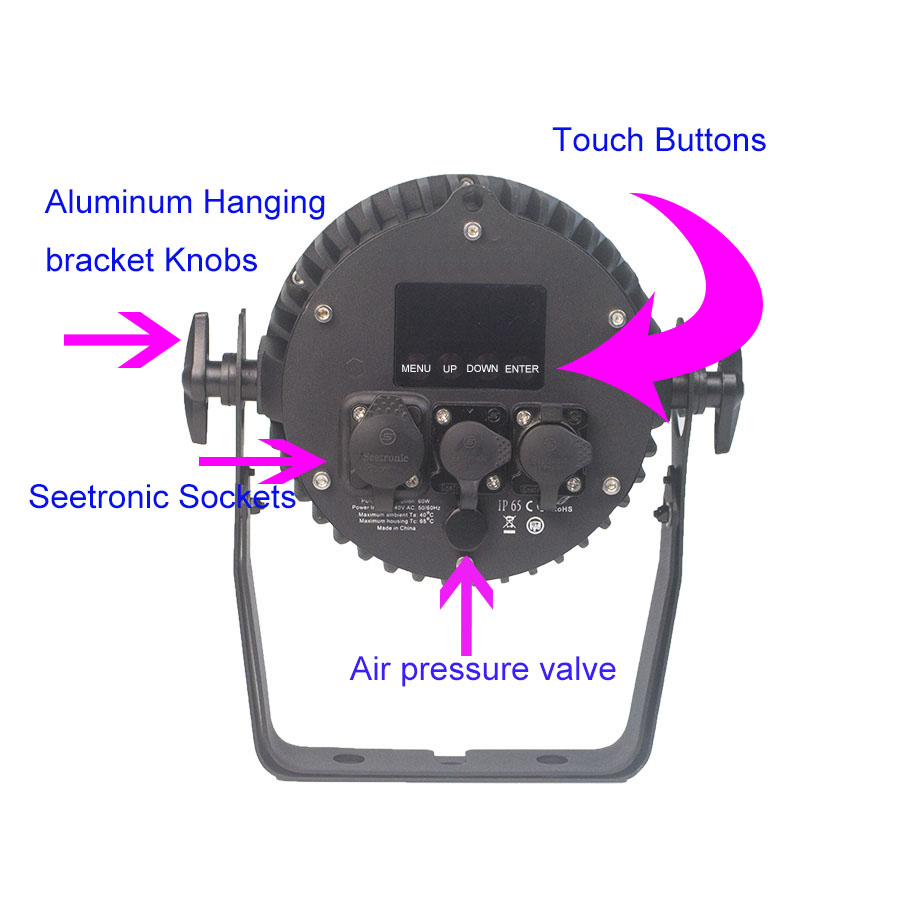

LCD display with 4 Touch buttons control panel

IP 65 3Pin or 5-pin DMX XLR connectors (waterproof)

IP 65 Seetronic VED/CE/UL approved POWERCON in/out  connectors (Waterproof)

Light Source: 18 x 12W RGBWA+UV LED module

Exellent color mixing effect

Compact design, slim and ligh weight

Outstanding strobe effect with variable speed

0~100% smooth dimming

Flicker free management

IP65 protect rating.



Technical Specification:

Optical:

Light Source: 6X12W RGBWA+UV 6-in-1 LED

Life expectancy: Rated at 30,000 hrs.

Light Number: 6 PCS

Beam angle: 15°, 25°, 45° optional

Luminous Flux： 1250lm

PWM frequency: 800Hz, 2K Hz, 4KHz, 10K Hz, 20KHz, 25K Hz (Selectable on control panel)

Dimmer: Electronic Dimming: 0 - 100%

Dimmer Curves: 1 linear dimming + 3 dimming curves (Square Curve, Anti-Square Curve and S-Curve)

Flicker Free: Yes, Good for HD Vedio, Camera, TV studio, Theatre, Stage … and so on

Connection:

DMX: IP65 waterproof 3-pin or 5-pin DMX XLR In/Out

Power: IP65 PowerCON True1 In/Out to power daisy chain fixture

Control:

Control protocol: DMX-512

DMX Channels: 12 / 8 / 6 / HSV / HSI channels (5 channel modes)

Stand Alone: Built-in Auto Programs, Master/Slave, Custom Colors Mixing Setup, Preset Solid Colors

Control Panel Display 0802 LC Display (user-friend readable) with 4-buttons

Key Lock Yes

Electrical:

Power Draw Total: 60W (All LED's @ Full On)

Multi-voltage operation: AC 100-240V, 50/60Hz  (Power supply with electronic auto-ranging)

Daisy chain: 10 fixtures (120V); 20 fixtures (230V)

Cooling: Smart cooling system thermal sensor, No fan

Construction / Physical:

Materials: Aluminum die-cast housing, black

Dimensions (LxWxH):  215 x 215 x 110mm

Weight: 3 kg.

Protection Rating: IP65
