18X12W RGBWA+UV 6-in-1 LED Slim Par Light with Powercon (China factory)
18X12W RGBWA+UV 6-in-1 LED Slim Par Light with Powercon (China factory) 18X12W RGBWA+UV 6-in-1 LED Slim Par Light with Powercon (China factory) 18X12W RGBWA+UV 6-in-1 LED Slim Par Light with Powercon (China factory) 18X12W RGBWA+UV 6-in-1 LED Slim Par Light with Powercon (China factory) 18X12W RGBWA+UV 6-in-1 LED Slim Par Light with Powercon (China factory)

18X12W RGBWA+UV 6-in-1 LED Slim Par Light with Powercon (China factory)

Product ID : Tourpar Hex18
Product Tags : Wash light
Product Attributes :

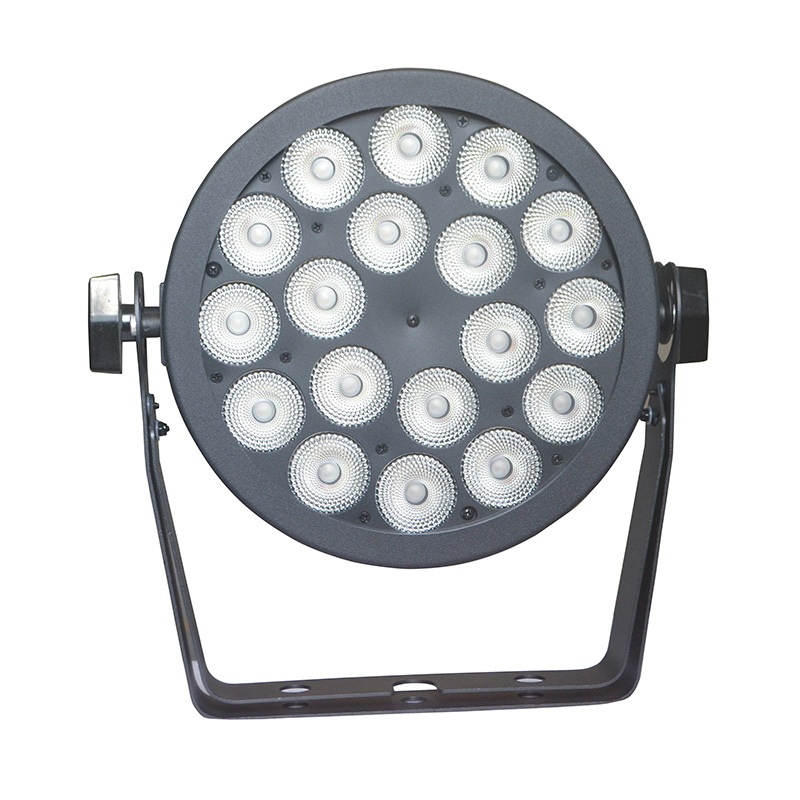

This Hexa LED par light made of aluminum diecast housing, Slim, lightweight for easy installation and transportation.

Great for quiet performance, silent operation, no moving parts inside.

Flicker free, suitable for use on camera, video, movie, TV studio and so on

Built-in non-linear dimming modes offers super-smooth LED fading

OEM/ODM welcome, your brand name logo allow to print on the units and packing even small order



Product Description

The TourPAR Hex18, using 18 pcs 12W RGBWA+UV 6-in-1 LED, combines powerful output and colorful wash into its slim body. The par is featuring 0~100% smooth dimming with 4 variable dimming curves, an outstanding strobe effect with variable speed, variable preset macro effects and smooth color mixing & switching, to create psychedelic effect. Very suitable for bars, ball rooms, night clubs, TV studio, Threatre and other entertainment applications.

Product Name: 18x12W RGBWA+UV LED Slim Par Light For Professional Stage Lighting

Model TOURPAR Hex18





FEATURES:

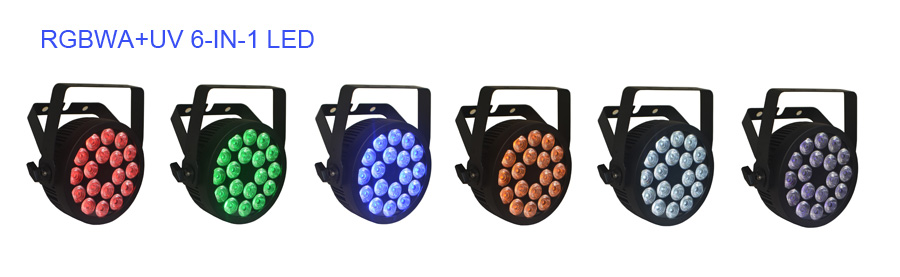

Light Source: 18 x 12W RGBWA+UV LED module

Exellent color mixing effect

Compact design, slim and ligh weight

Outstanding strobe effect with variable speed

0~100% smooth dimming

Flicker free management

Key Lock function



Technical Specification:

Optical:

Light Source: 18X12W RGBWA+UV 6-in-1 LED

Life expectancy: Rated at 30,000 hrs.

Light Number: 18 PCS

Beam angle: 15°, 25°, 45° optional

Luminous Flux: 3250lm

PWM frequency: 800Hz, 2K Hz, 4KHz, 10K Hz, 20KHz, 25K Hz (Selectable on control panel)

Dimmer: Electronic Dimming: 0 - 100%

Dimmer Curves: 1 linear dimming + 3 dimming curves (Square Curve, Anti-Square Curve and S-Curve)

Flicker Free: Yes, Good for HD Vedio, Camera, TV studio, Theatre, Stage … and so on





Connection:

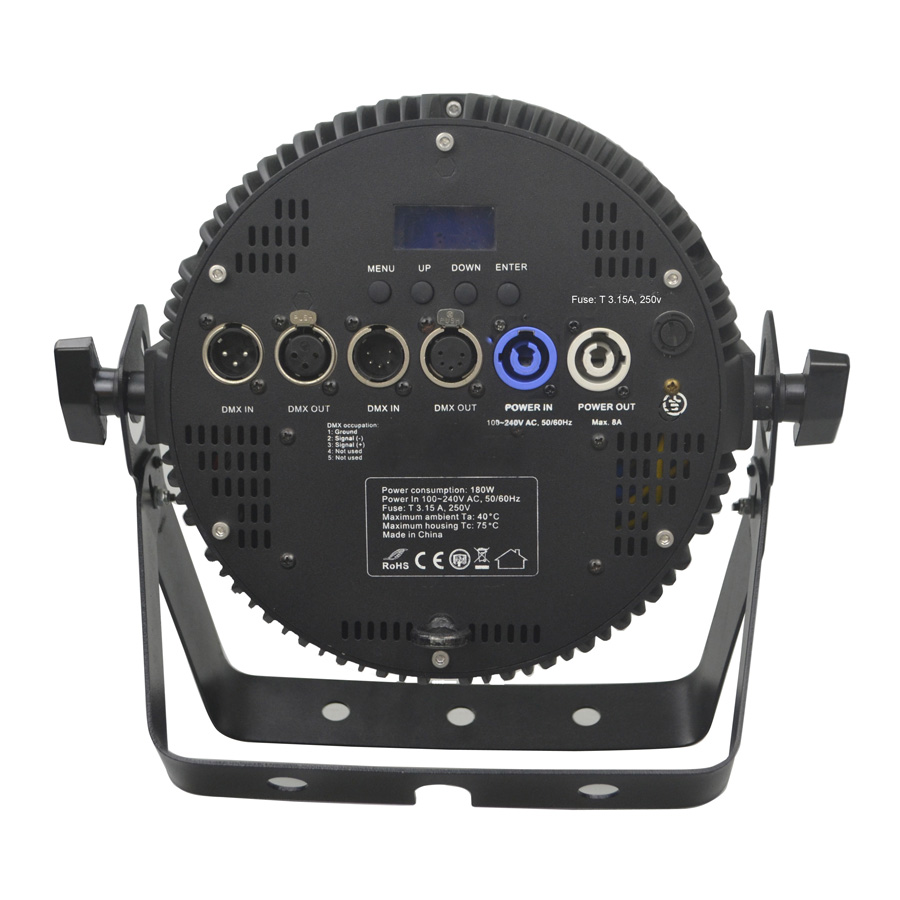

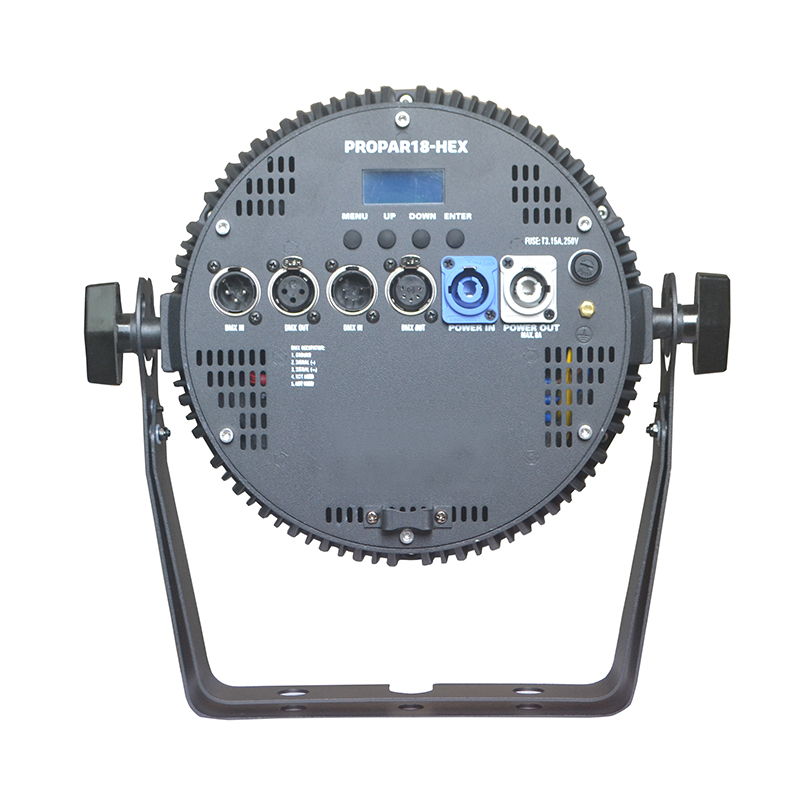

DMX: 3-pin + 5-pin DMX XLR In/Out

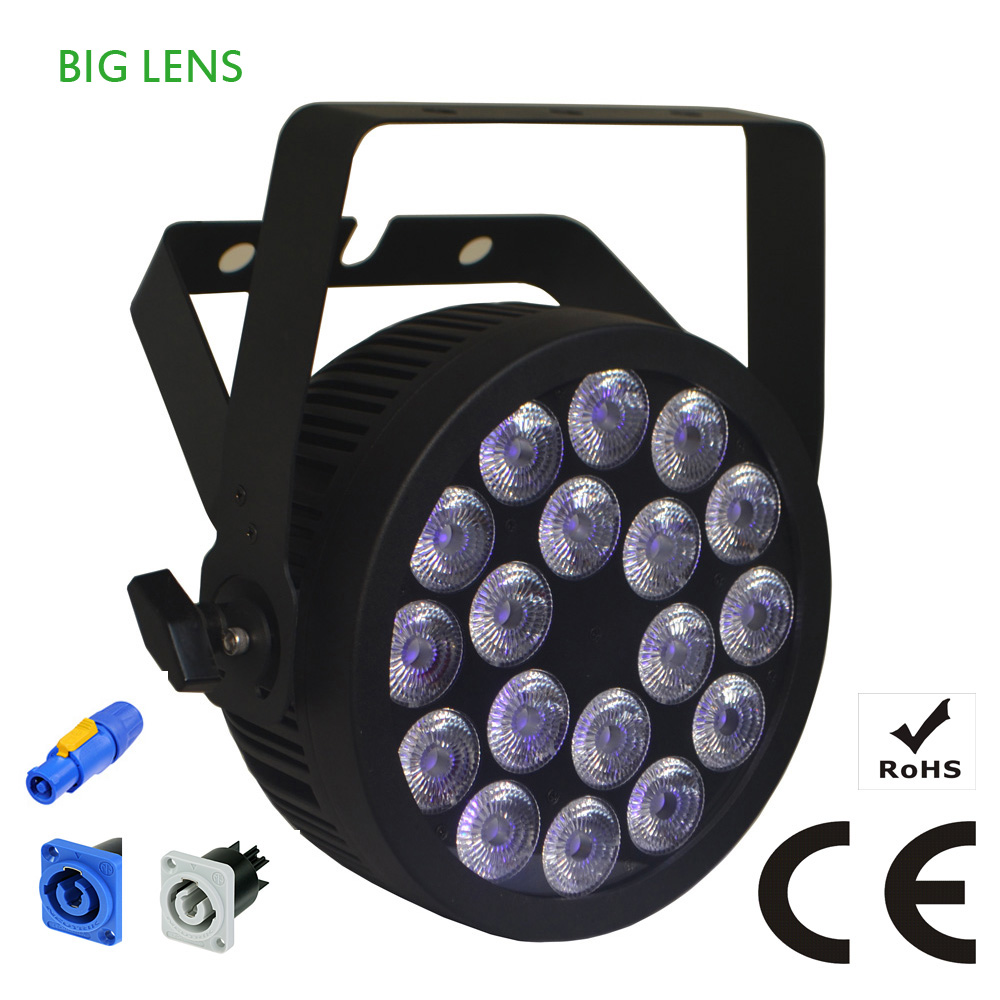

Power: PowerCON In/Out to power daisy chain fixture





Control:

Control protocol: DMX-512

DMX Channels: 12 / 8 / 6 / HSV / HSI channels (5 channel modes)

Stand Alone: Built-in Auto Programs, Master/Slave, Custom Colors Mixing Setup, Preset Solid Colors

Control Panel Display 0802 LC Display (user-friend readable) with 4-buttons

Key Lock Yes





Electrical:

Power Draw Total: 160W (All LED's @ Full On)

Multi-voltage operation: AC 100-240V, 50/60Hz  (Power supply with electronic auto-ranging)

Daisy chain: 6 fixtures (120V); 12 fixtures (230V)

Cooling: Smart cooling system thermal sensor, No fan





Construction / Physical:

Materials: Aluminum die-cast housing, black

Dimensions (LxWxH):  310 x 310 x 110mm

Weight: 5.5 kg.

Protection Rating: IP22
